Greetings!
This is a quick and simple guide on how to set up your RGB or Reset Button.

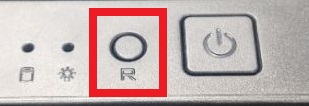

To be specific, what I am referring to is the R Button found on the IO ports on the front panel.
First off, this R Button functions as the RGB Button OR the Reset Button. It cannot be both.
To have the R Button as the RESET Button: Plug in the Reset SW cable onto the Reset header on your motherboard.
To have the R Button as the RGB Button: Ensure that the Reset SW cable is plugged in as shown on the image below. This is usually the preinstalled default.

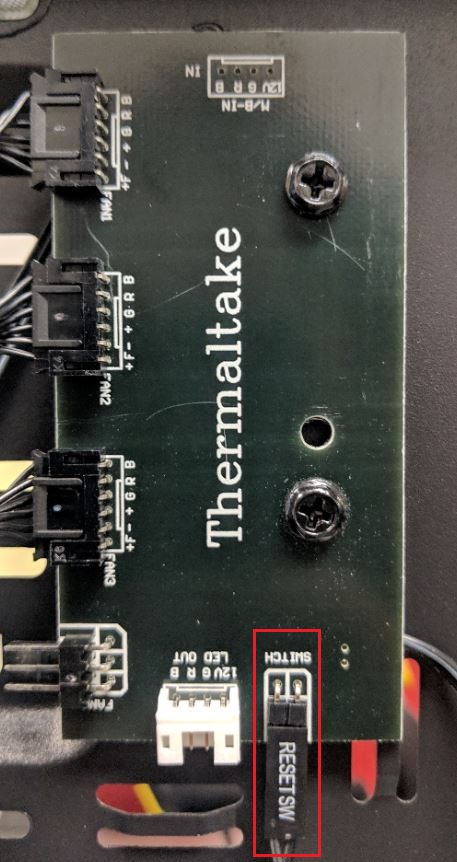

For the 12V RGB Control Boards, refer to the red boxed area:

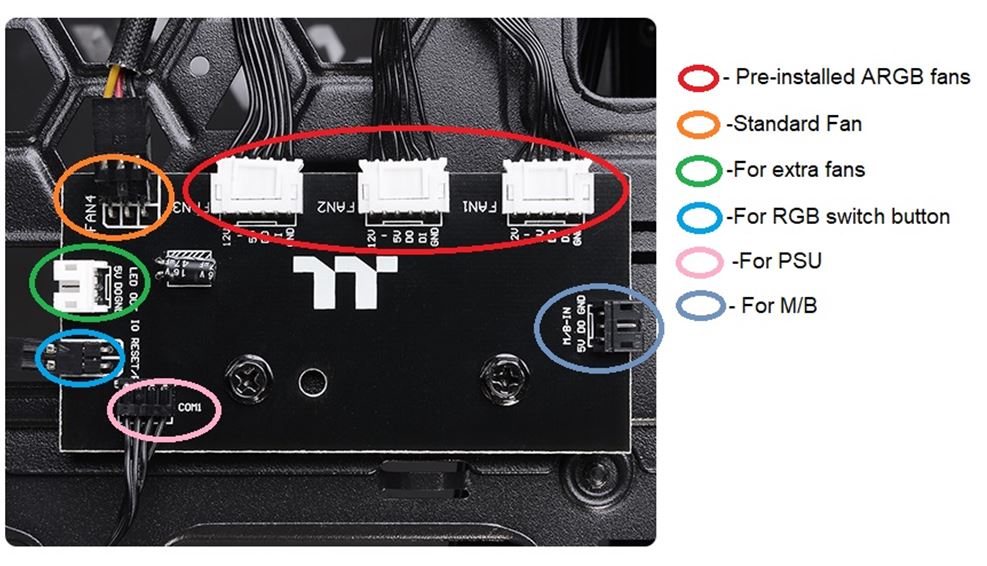

For the 5V ARGB Control Boards, refer to the light blue circle below "For RGB switch button".
